Power over Ethernet Cape for the BeagleBone

Power over Ethernet Cape for the BeagleBone
Power over Ethernet Cape for the BeagleBonePower over Ethernet Cape for the BeagleBone
  • 50.00
    €
    excl. VAT, excl. delivery
  • Variant
    SBCPoE BBB
  • SKU
    sbcpoe-bbb
  • Quantity
  • In stock

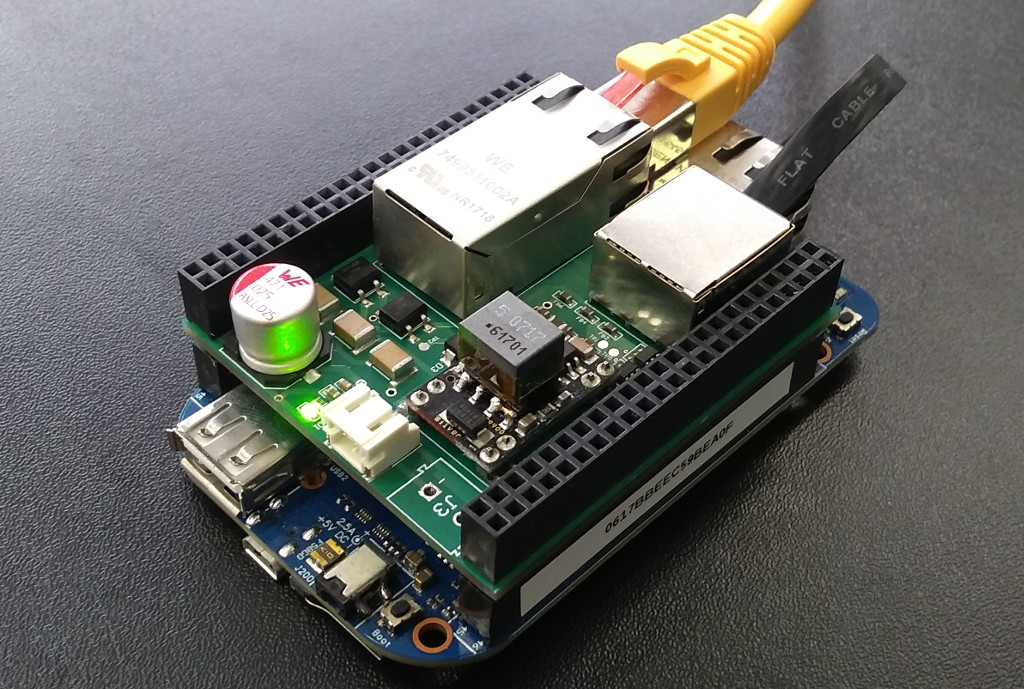

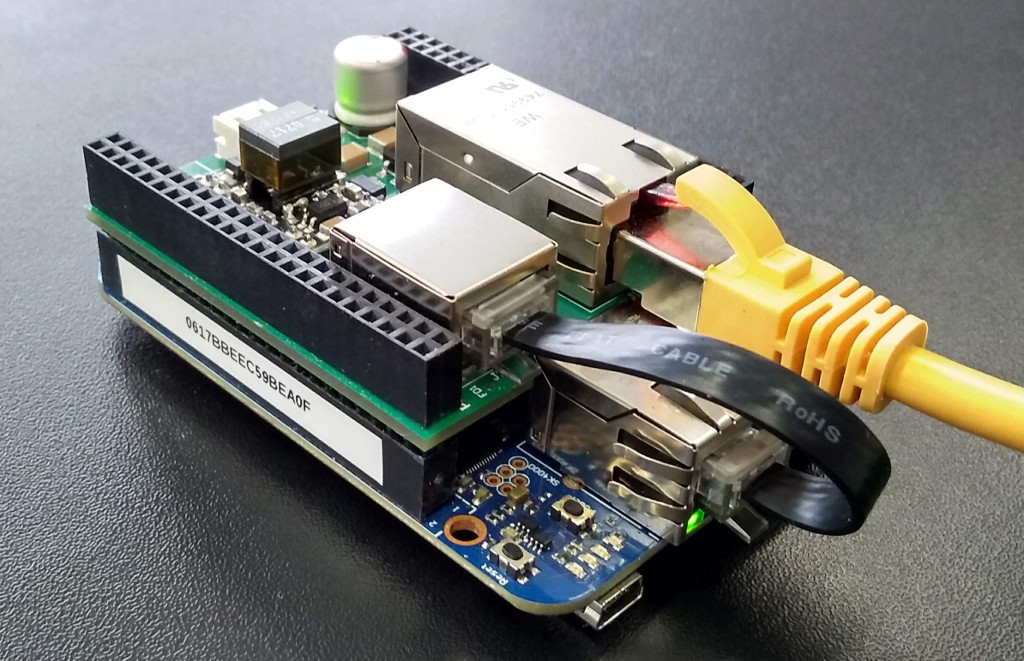

A gigabit Ethernet (GBe) enabled PoE Cape for the BeagleBone Black single board computer.

Highlights

  • Supports 10/100/1000MBit/s ethernet speeds
  • IEEE 802.3af compliant
  • Supports stacking (adding other capes on top of it)
  • Overload protection
  • 9W power delivery
  • 2-pin 2mm JST male header for powering other external equipment @5V
  • High efficiency enabled by Schottky diode bridge rectifier

Specifications

Maximum output Power 9 W
Maximum output Current 1.8 A
Output Ripple and Noise 95 mVpp
Dimensions WxHxD 60.2 x 54.2 x 25.2 mm
Weight 75 g
Temperature Range (environment) -40 to 70° C maximum
-40 to 50° C recommended
Short-Circuit Duration ∞
Efficiency (typical) > 80%
Certifications CE
Materials RoHS, REACH

Kit Contents

  • PoE cape
  • Ethernet loop cable to connect the shield to the BeagleBone of ~7.5 cm length

Set-up

  1. Disconnect any other power source from the BeagleBone and leave it disconnected when using the cape
  2. Snap on the cape (no need for screws as the dual-row pin headers will hold the cape tightly)
  3. Connect the BeagleBone's ethernet port with the J2 ethernet jack from the cape (small one)
  4. Connect a 802.3af compliant PoE injector (usually an ethernet switch) to the PoE in ethernet jack J1

Performance Test

Carried out on a BeagleBone enhanced.

root@beaglebone:~# iperf3 -c 192.168.178.87
[ ID] Interval           Transfer     Bandwidth       Retr
Segmentation fault
root@beaglebone:~# iperf3 -c 192.168.178.86
Connecting to host 192.168.178.86, port 5201
[  4] local 192.168.178.190 port 46806 connected to 192.168.178.86 port 5201
[ ID] Interval           Transfer     Bandwidth       Retr  Cwnd
[  4]   0.00-1.03   sec  30.7 MBytes   250 Mbits/sec    0   94.7 KBytes
[  4]   1.03-2.00   sec  30.0 MBytes   259 Mbits/sec    0   94.7 KBytes
[  4]   2.00-3.02   sec  31.2 MBytes   256 Mbits/sec    0   94.7 KBytes
[  4]   3.02-4.02   sec  30.1 MBytes   253 Mbits/sec    0   94.7 KBytes
[  4]   4.02-5.03   sec  31.2 MBytes   260 Mbits/sec    0   94.7 KBytes
[  4]   5.03-6.02   sec  30.0 MBytes   255 Mbits/sec    0   94.7 KBytes
[  4]   6.02-7.04   sec  31.2 MBytes   257 Mbits/sec    0   94.7 KBytes
[  4]   7.04-8.01   sec  29.9 MBytes   258 Mbits/sec    0    139 KBytes
[  4]   8.01-9.04   sec  26.2 MBytes   214 Mbits/sec    0    139 KBytes
[  4]   9.04-10.02  sec  24.9 MBytes   212 Mbits/sec    0    139 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bandwidth       Retr
[  4]   0.00-10.02  sec   296 MBytes   247 Mbits/sec    0             sender
[  4]   0.00-10.02  sec   296 MBytes   247 Mbits/sec                  receiver
