BG77 based LTE Cat M1 and LTE Cat NB2 (NB-IoT) Card

BG77 based LTE Cat M1 and LTE Cat NB2 (NB-IoT) Card
BG77 based LTE Cat M1 and LTE Cat NB2 (NB-IoT) Card
  • 44.50
    €
    excl. VAT, excl. delivery
  • Variant
    BG77 based LTE Cat M1/ NB2 (NB-IoT) Card
  • SKU
    ltec-bg77-m2
  • Quantity
  • In stock

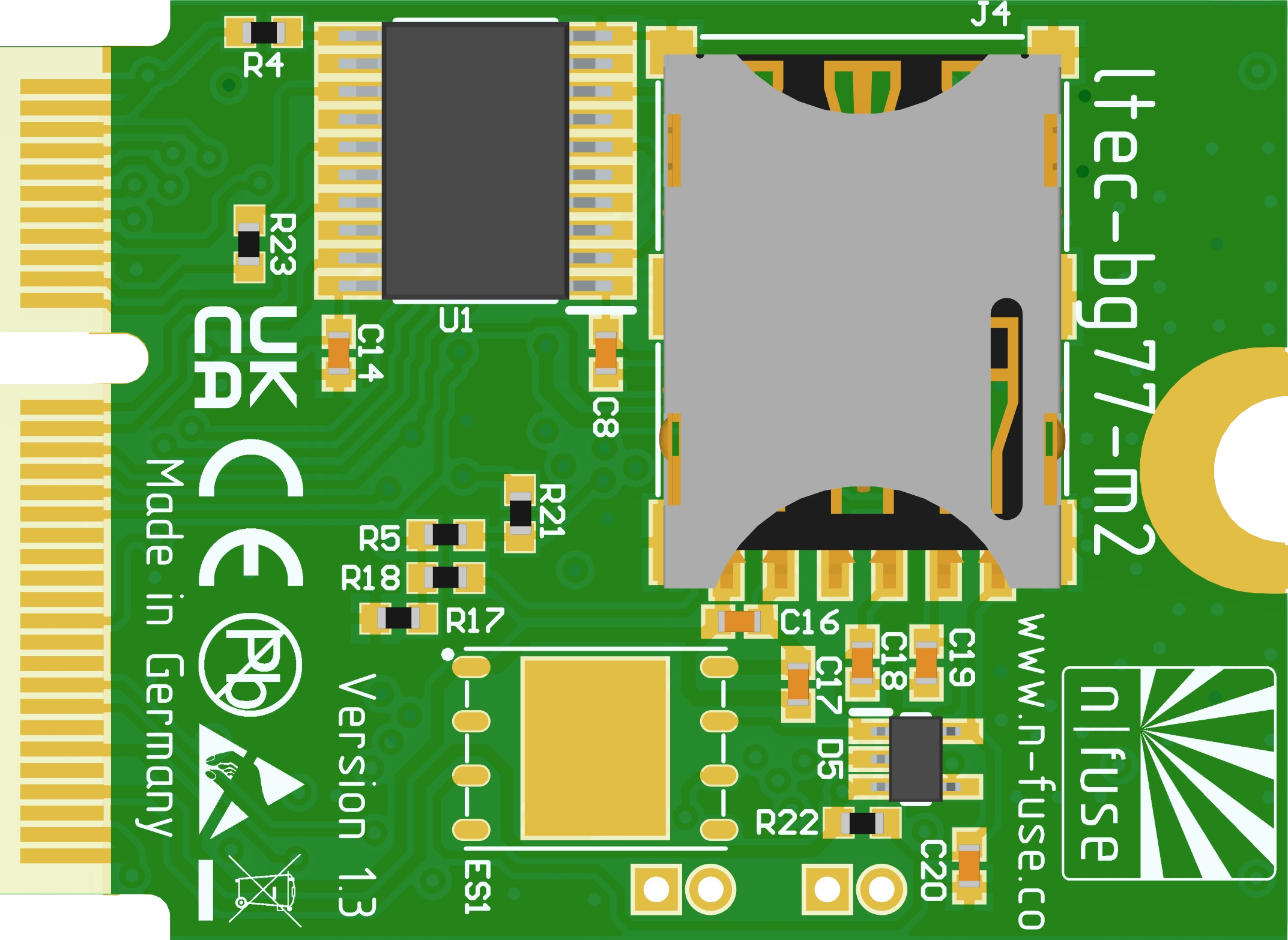

The LTEC card is an LTE Cat M1, NB2 card with integrated GNSS adopting the standard M.2 2230 E-Key based on the Quectel BG77 module. For a IoT, M2M applications such as wireless PoS, tracking, smart metering, etc.

Highlights

  • USB and UART host interface
  • Support for external SIM card
  • On-board nano-SIM card holder and eSIM footprint
  • Broad usage spectrum through standard M.2 2230 E-Key
  • Data Rate LTE Cat M1:
    • Max. 588 kbps (DL)
    • 1119 kbps (UL)
  • Data Rate LTE Cat NB2:
    • Max. 127 kbps (DL)
    • 158.5 kbps (UL)
  • Data Rate LTE Cat NB1:
    • Max. 32 kbps (DL)
    • 70 kbps (DL)
  • Global use and broad carrier approval
  • GNSS based on GPS/GLONASS/BeiDou/Galileo/QZSS
  • Low profile and compact

Specification

For more details see the specification of the Quectel BG77 module.
