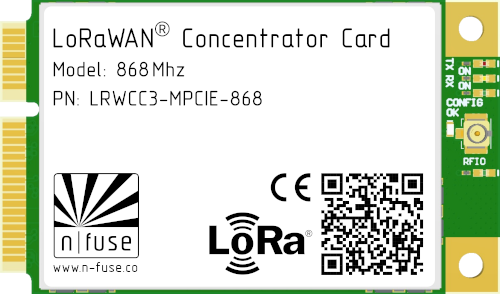

Concentrator Card LRWCC3-MPCIE for LoRaWAN® technology

Concentrator Card LRWCC3-MPCIE for LoRaWAN® technology
  • 100.00
    excl. VAT, excl. delivery
  • SKU
    lrwcc2-mpcie-868
  • Quantity
  • Out of stock

The LRWCC3-MPCI is a family of LoRaWAN® concentrator cards in mini PCIe form factor based on Semtechs's SX1303 core cell reference design. An LRWCC card enables OEMs and system integrators to build high-performance, certified LoRaWAN® gateway solutions. Moreover it allows to retrofit existing routers and other edge-level network equipment with LoRaWAN® gateway capabilities.

The card can be used in any embedded platform offering a free mini-PCIe slot with USB connectivity and capable of providing enough power for the card. Alternatively an SPI/ I2C or UART host interface is offered. Typically the host system runs a reasonably recent Linux operating system. Apart from support for the USB controller and a networking stack (TCP/IP and UDP), no further Kernel drivers are required.

LoRa® and LoRaWAN® are registered trademark of Semtech Corporation.

Downloads


Accessories

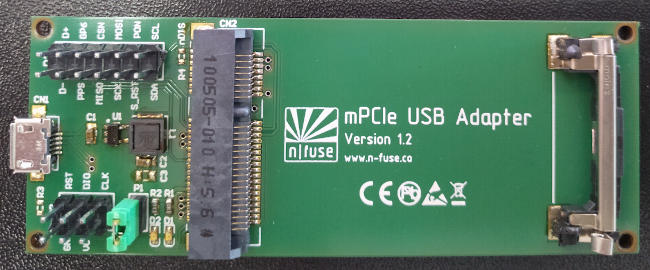

  • Mini PCIe to USB Adapter for LRWCC3

  • Mini PCIe to USB Adapter for LRWCC3
  • The mpcie-usb3a-lrwcc3_schematic.pdf mini PCIe to USB adapter allows to insert compatible cards like the LoRaWAN concentrator card LRWCCx-MPCIE and connect them via a USB cable to a host computer. Note: you need to order an antenna pigtail and an antenna to build a Pico Gateway with this adapter.

  • 45.50
    excl. VAT, excl. delivery
  • Variant
    mini PCIe to USB Adapter
  • SKU
    mpcie-usb3a-lrwcc3
  • Quantity
  • In stock

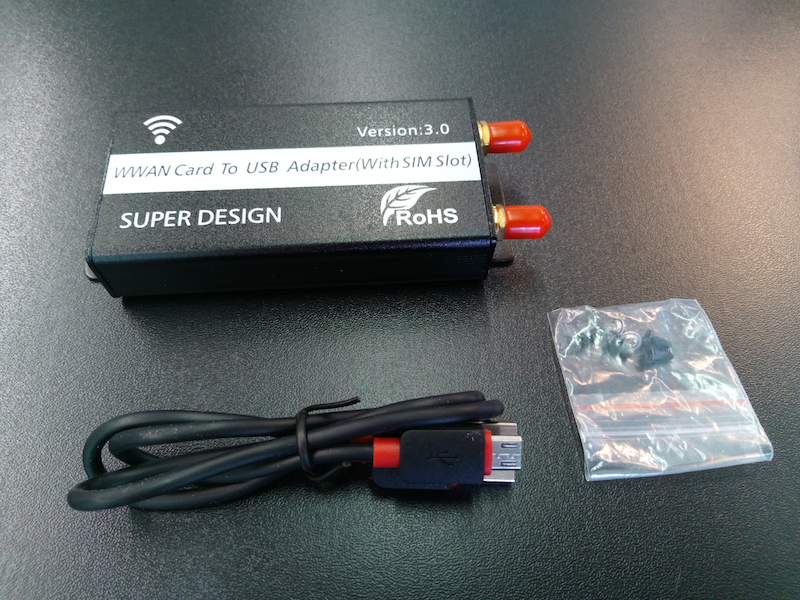

  • Mini PCIe to USB Adapter

  • Mini PCIe to USB Adapter
  • The mini PCIe to USB adapter allows to insert compatible cards like the LoRaWAN concentrator card LRWCCx-MPCIE and connect them via a USB cable to a host computer. Note: you need to order an antenna pigtail and an antenna to build a Pico Gateway with this adapter.

  • 16.40
    excl. VAT, excl. delivery
  • Variant
    mini PCIe to USB
  • SKU
    mpcie-usb3a-wllm
  • Quantity
  • In stock

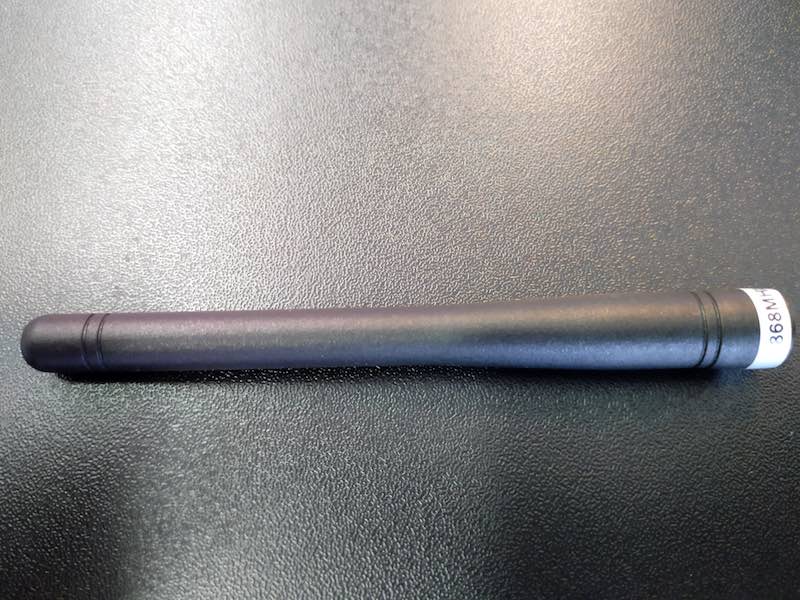

  • 3 dBi Rubber Antenna

  • 3 dBi Rubber Antenna
  • 868 Mhz rubber antenna with SMA connector with a length of ~ 10 cm. (3dbi-ra-868)

  • 3.50
    excl. VAT, excl. delivery
  • SKU
    3dbi-ra-868
  • Quantity
  • In stock

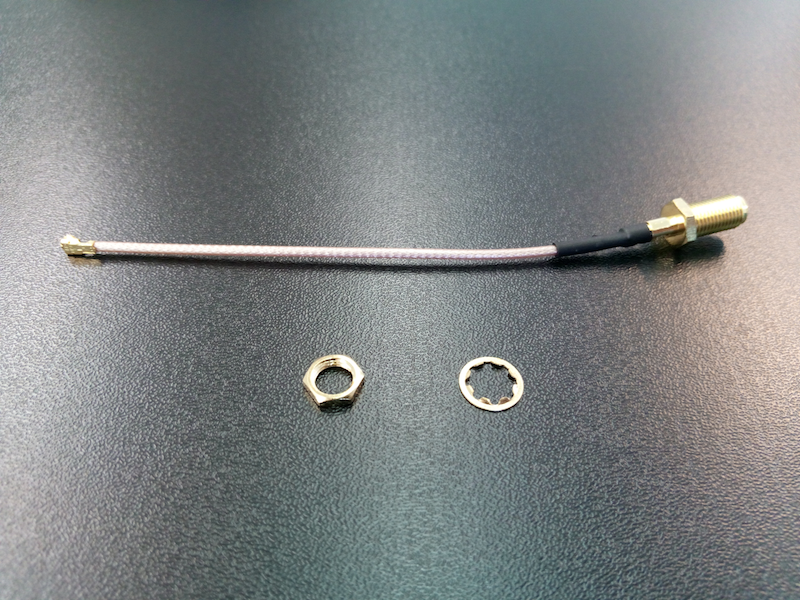

  • SMA to U.FL Pigtail 10 cm

  • SMA to U.FL Pigtail 10 cm
  • Antenna pigtail cable U.FL to SMA receptacle with a length of 10 cm.

  • 1.00
    excl. VAT, excl. delivery
  • Variant
    10cm
  • SKU
    sma-ufl-pt10cm
  • Quantity
  • In stock
