LoRaWAN® IoT Action Button and Sensors in a very compact Form Factor

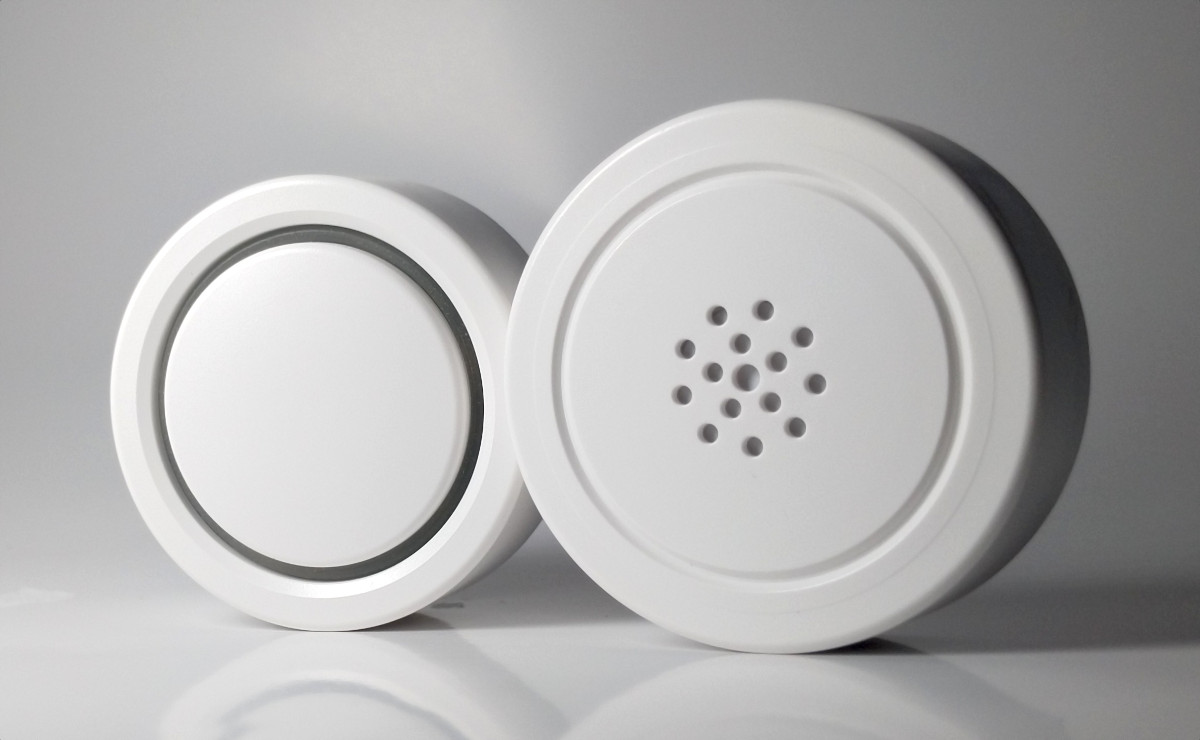

The sensors have dual wireless interface supporting NFC and LoRaWAN for 868 MHz and 915 MHz regulatory domains. The line up consists the models:

• sta-lr: LoRaWAN Action Button with tactile feedback,
• stx-lr: LoRaWAN Environment Sensor (temperature, humidity), motion (acceleration), magnetic field (via reed switch), ambient light,
• ste-lr: LoRaWAN Environment Sensor (temperature, humidity, air pressure, air quality VOCs).

The combination of the following features makes these products unique:

• Very small physical dimensions
• Appealing industrial design
• IP54 rated enclosure

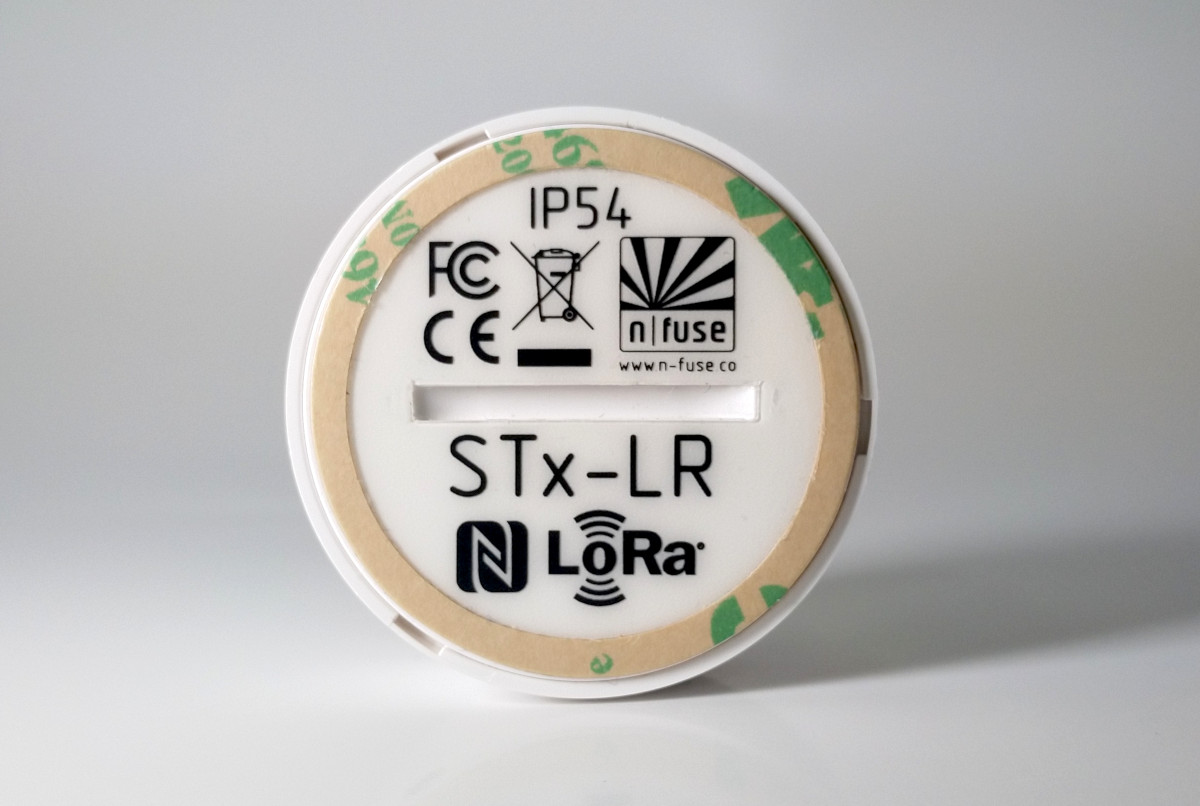

• Residue-free adhesive tape based mounting
• Dual wireless interface with LoRaWAN and NFC for configuration and commissioning
• Ultra low power optimized to enable long battery life of 10+ years is possible
• Open source firmware
• Possibility to re-program the device (programmer adapter available)

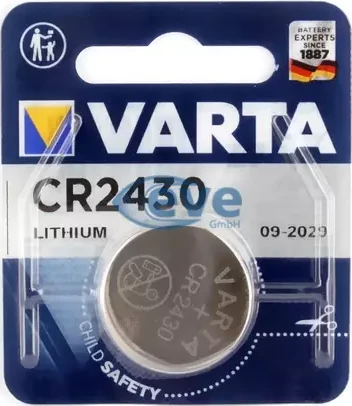

• Environmentally friendly through easily replaceable battery
• RF Output power of up to 14 dBm
• Firmware upgrade and device configuration via NFC
• Android OS based Mobile app for management
• With custom Firmware: freely programmable NFC tag providing NDEF records to mobile devices
• Optional secure element for secure key storage

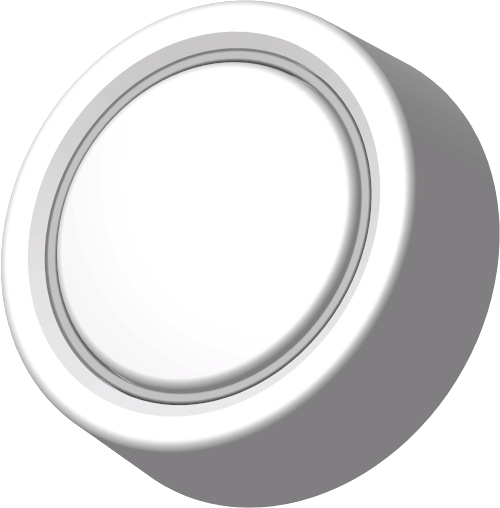

“Action”

Is an IoT button based on a tactile switch which can is used to detect the following three gestures:

• single press
• double press
• long presses

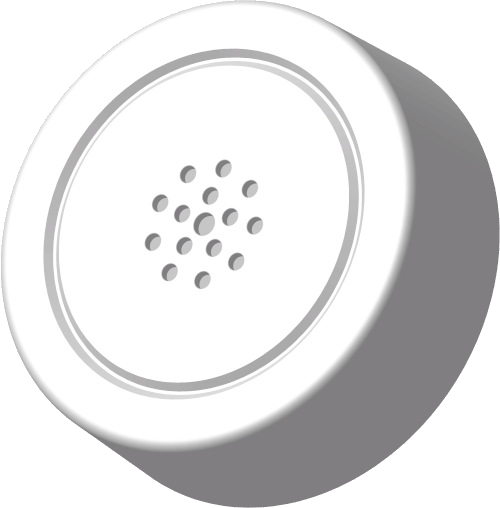

“Multisensor”

Is capable of sensing the following measurements:

• Environment
  • Temperature
  • Humidity
• Motion (acceleration)
• Magnetic field sensitive Reed switch (normally open)
• Ambient light

Triggers can be configured for the following sensor readings based on thresholds:

• Environment
  • Temperature (upper or lower bound)
  • Air pressure (upper or lower bound)
• Motion (acceleration)
• Ambient light (upper and lower bound)

This allows the device to only send data when a defined threshold is exceeded.

“Environment”

Is capable of sensing the following measurements:

• Temperature
• Humidity
• Air pressure
• Air quality VOCs

LoRa® and LoRaWAN® are registered trademark of Semtech Corporation.
