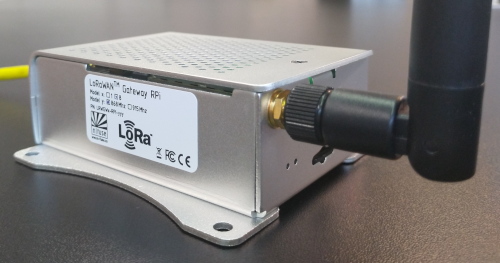

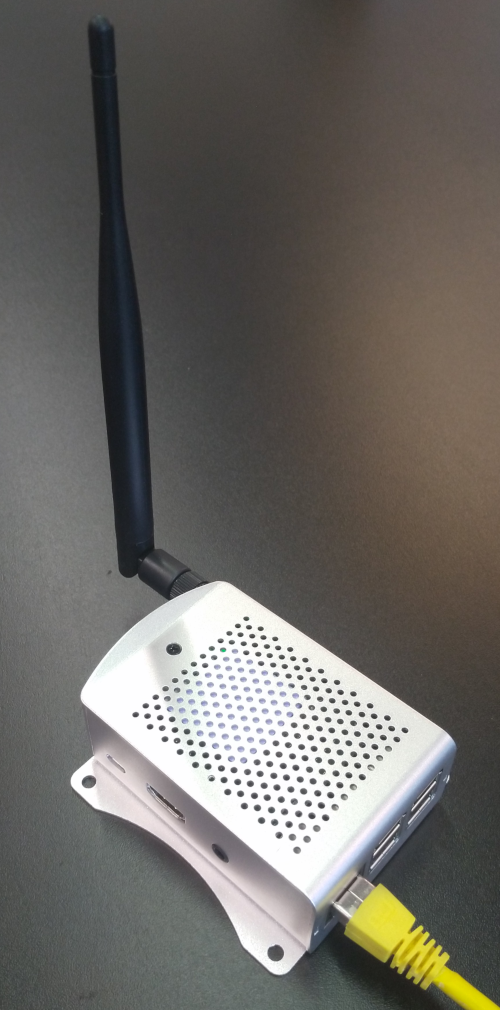

PoE enabled Raspberry Pi 3B+ based LoRaWAN™ Gateway

Antenna is not included.
  • 178.50
    excl. VAT, excl. delivery
  • SKU
    lrwgw8-rpi-868
  • Quantity
  • In stock

A LoRaWAN™ gateway based on the Raspberry Pi 3B+, the LRWCCx-MPCIE Concentrator and the SBCPoE RPi Hat.

Highlights

  • Raspberry Pi 3B+ as host system
  • SMA port for ISM band antenna
  • IEEE 802.3af compliant PoE
  • Supports 10/100/1000 MBit/s ethernet speeds
  • 16 GiB quality SD Card
  • Compact metal enclosure
  • Conduction based heat dissipation

Specifications

CPU 4x 1.40 GHz ARM Cortex-A53
Memory 1 GiB LPDDR2 RAM
Flash Storage 16 GiB SD Card
Interfaces WiFi 802.11b/​g/​n/​ac (BCM43455), Bluetooth 4.2 (BCM43455), Bluetooth LE
LAN 1x GbE LAN (Microchip LAN7515)
LoRaWAN™ Concentrator Card with UART Firmware
Connectors Micro USB B (power)
RJ45 Ethernet
USB A Host 4x
SMA Connector LoRaWAN RF IO
SD Card Slot
Power Supply IEEE 802.3af PoE
Micro USB B
Operating System Customized Raspbian
International Protection Marking 20, indoor use only
Dimensions WxHxD 60.2 x 54.2 x 25.2 mm
Weight 75 g
Temperature Range (environment) -10 to 55° C
Certifications CE
Materials RoHS, REACH

Downloads


Accessories

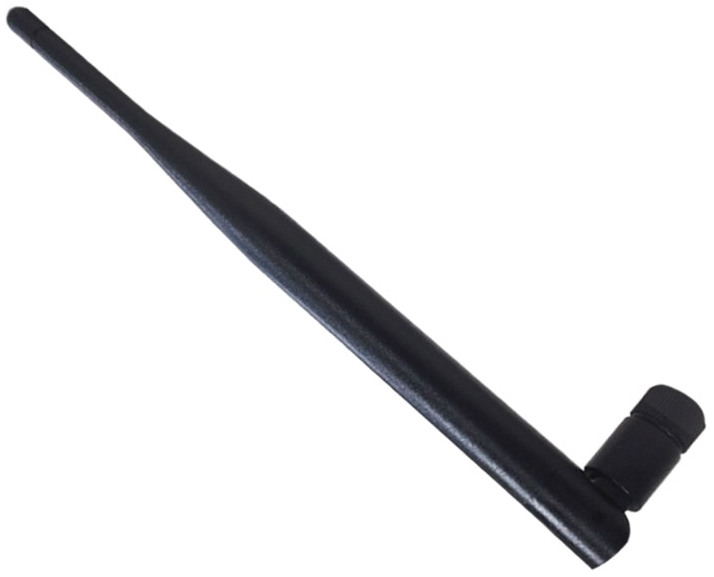

  • 3 dBi Swivel Rubber Antenna

  • 868 Mhz swivel rubber antenna with SMA connector with a length of ~ 20 cm. (3dbi-swivel-ra-868)
  • 4.50
    excl. VAT, excl. delivery
  • Variant
    868Mhz
  • SKU
    3dbi-swivel-ra-868
  • Quantity
  • In stock
