Power over Ethernet Hat for the Raspberry Pi 3B+/ 4B with up to TBD W output at 12 VPower over Ethernet Hat for the Raspberry Pi 3B+/ 4B with up to TBD W output at 12 V
  • 150.00
    excl. VAT, excl. delivery
  • Variant
    SBCPoE RPi 3B+/ 4B high power
  • SKU
    sbcpoe-rpi-hp
  • Quantity
  • Out of stock

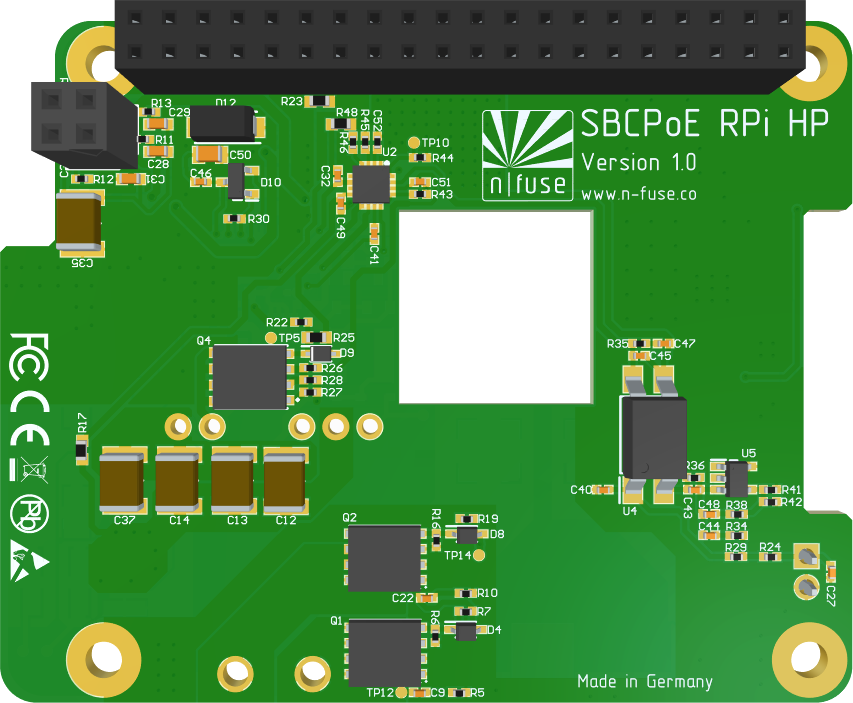

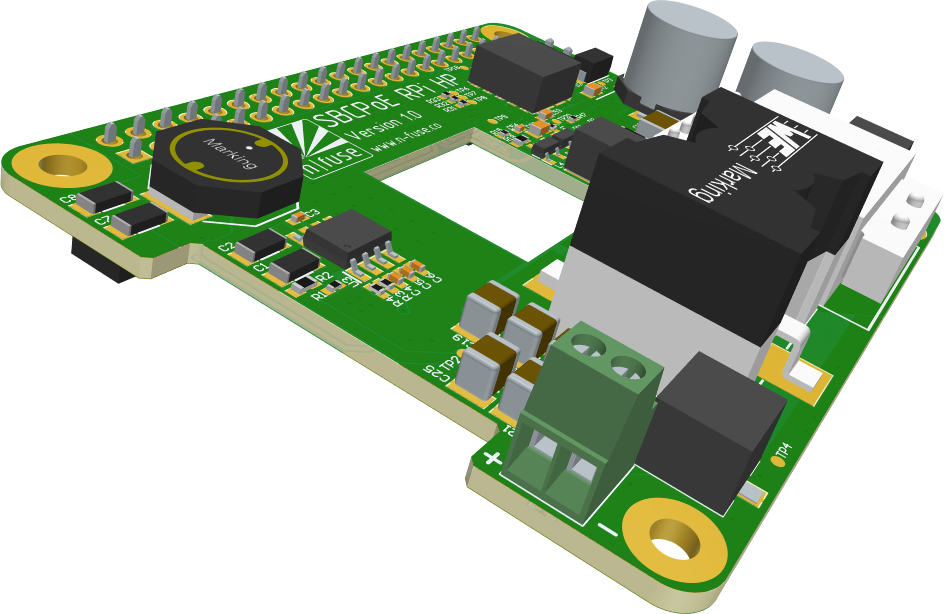

A PoE hat for the Raspberry Pi 3B+/ 4B single board computer with high power output.

Highlights

  • Supports 10/100/1000MBit/s ethernet speeds
  • IEEE 802.3af and 802.3bt compliant
  • Low profile and thus compatible with many standard RPi enclosures
  • Overload protection
  • TBD W power delivery
  • 12 V output via screw socket to power other devices
  • High efficiency enabled by active bridge rectifier
  • No power issues like the original PoE hat had

Specifications

Maximum output Power TBD W
Maximum output Current TBD A
Supported PoE Standards 802.3af and 802.3bt
Output Ripple and Noise 95 mVpp
Dimensions WxHxD 65.1 x 56.1 x 60.3 mm
Weight 150 g
Temperature Range (environment) -40 to 70° C maximum
-40 to 50° C recommended
Short-Circuit Duration
Efficiency of PoE part (typical) > 80%
Certifications CE
Materials RoHS, REACH

Kit Contents

  • SBCPoE RPi HP Hat
  • 2x nylon standoff spacers

Usage

  1. Disconnect any power source from the Raspberry Pi and leave it disconnected when using the hat
  2. Insert the standoff spacers and snap on the hat
  3. Connect a 802.3af or 802.3bt compliant PoE injector (usually an ethernet switch) to the RPi ethernet jack
